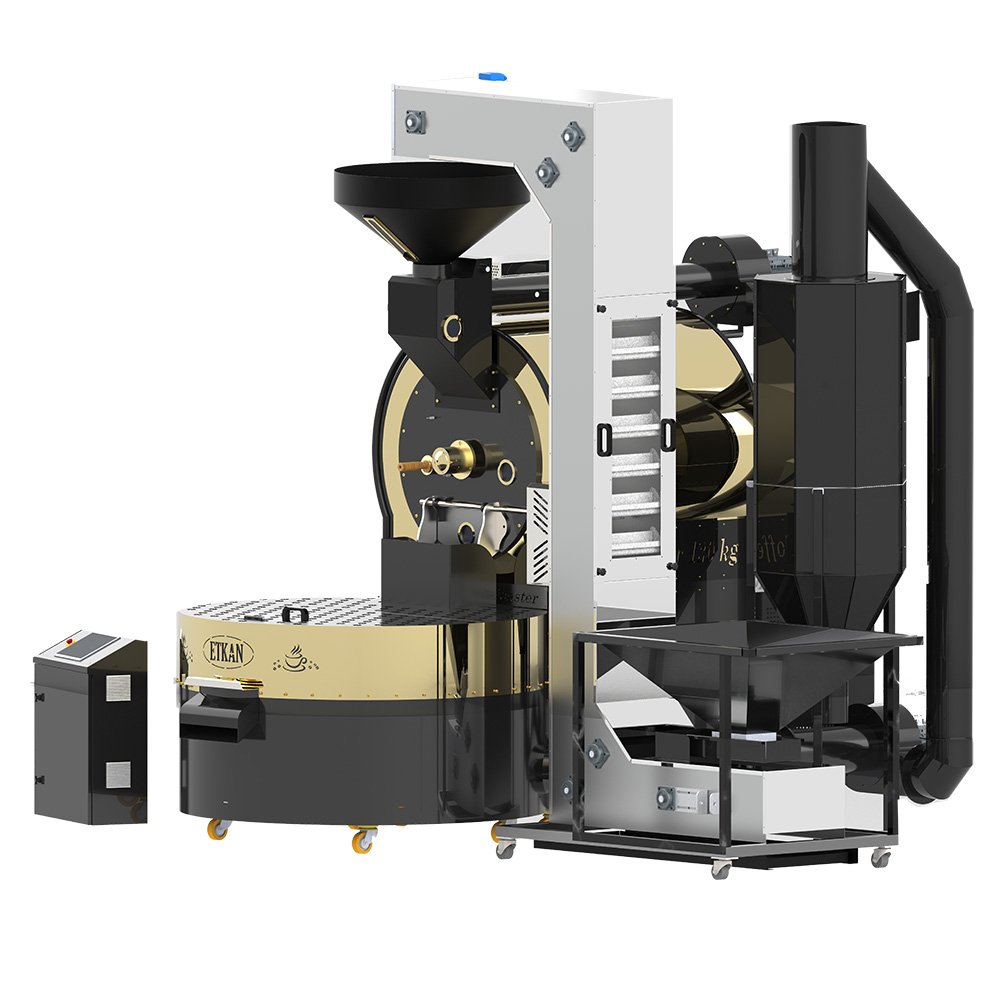

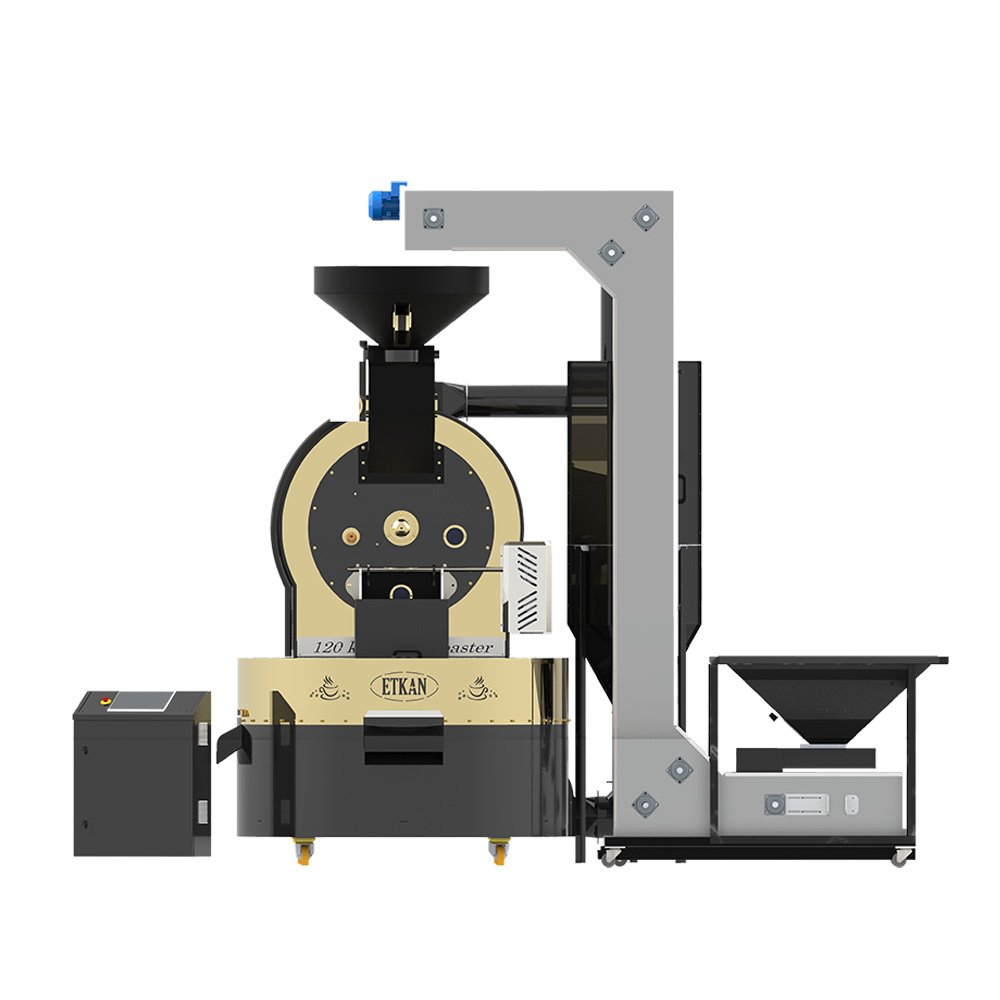

Coffee Roasters 120 Kg
Dominate the market with the 120kg Industrial Roaster, the flagship of ETKAN Syrian Company for Machinery and Equipment Manufacturing. Designed for massive output (300kg/h) with precise smart controls and advanced burner technology. We are the best coffee roaster manufacturer, offering world-class industrial solutions to ensure your product’s excellence.
Default features
1- Sample spoon and sampling bottle
2- The peel compartment is separate
3- Simultaneous roasting and cooling
4- The cooling system is developed by a high-performance turbine
5- Digital temperature and control indicator
Additional options
1- Transporting pills by air or mechanical feeder
2- Automatic seed discharge
3- Separate smoke filter
4- Computer operation
Gas Unit
- Configuration: Industrial setup for 4 cylinders with separate valves.
- Regulator: High-capacity industrial pressure regulator.
- Burner: Advanced Burner system for precise heat distribution.
- Gauges: Unit pressure (Bar) & Burner pressure (mm Bar).
Chaff Collector
- Type: Thermally insulated industrial Cyclone.
- Function: Efficient air current breaking for maximum separation.
- Safety: Equipped with Water Spray Nozzles to control sparks/fire
Control Mechanism
- Interface: Digital Touch Screen or Classic Manual Buttons.
- Automation: Fully Automatic or Semi-Automatic options.
- Sensors: Drum temp, Exhaust temp, and safety alarms.
Electrical Specs
- Voltage: 220/380 Volt – 50-60 Hz.
- Max Power: 18 – 21 kW (.
- Protection: Requires industrial circuit breaker.
- Control Panel: Independent unit for safety and easy access.
- Inverters: 5 Drives for full speed control (Drum, Fan, Mixer, etc.).
Loading Mechanism
- Standard Options:
- Pneumatic Air Loader (Green Beans).
- Mechanical Conveyor Belt.
Motors
- Count: 7 Motors for heavy-duty performance.
- Specs:
- 1 Main Motor 5 HP .
- 2 Motors 3 HP.
- 1 Motor (1 HP).
- 3 Motors (0.5 HP) for gate control.
- Drivers: 5 drivers to control the rotation speed of the drum, cooling drum, extractors, and green grain conveyor.
Cooling Mechanism
- Tray: Large diameter Stainless Steel (S.S 304).
- Performance: Rapid cooling (4-8 mins) to lock in flavor.
- Components: Independent high-power suction fan & insulated motor.
Insulation & Paint
- Material: Heavy-duty Turkish ceramic insulation (1500°C).
- Finish: Electrostatic painting for industrial durability.
- • Customization: Available in Black, Gold, White, or custom colors.
