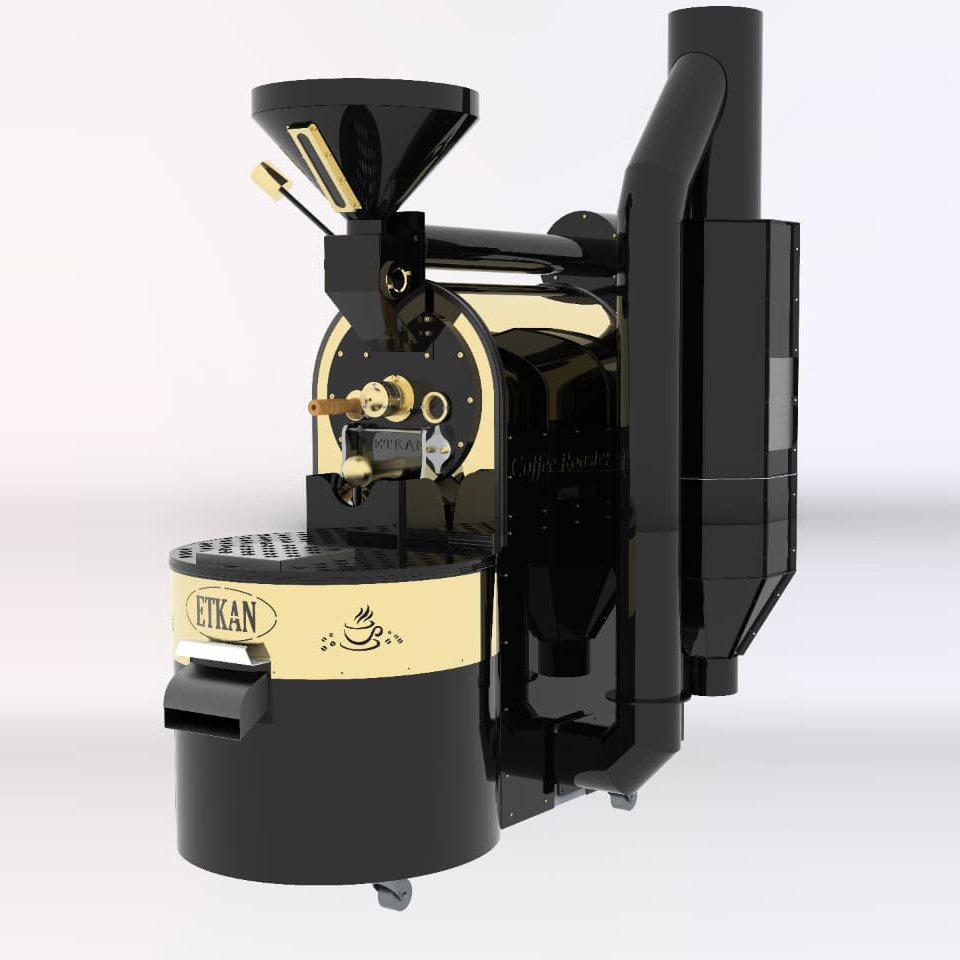

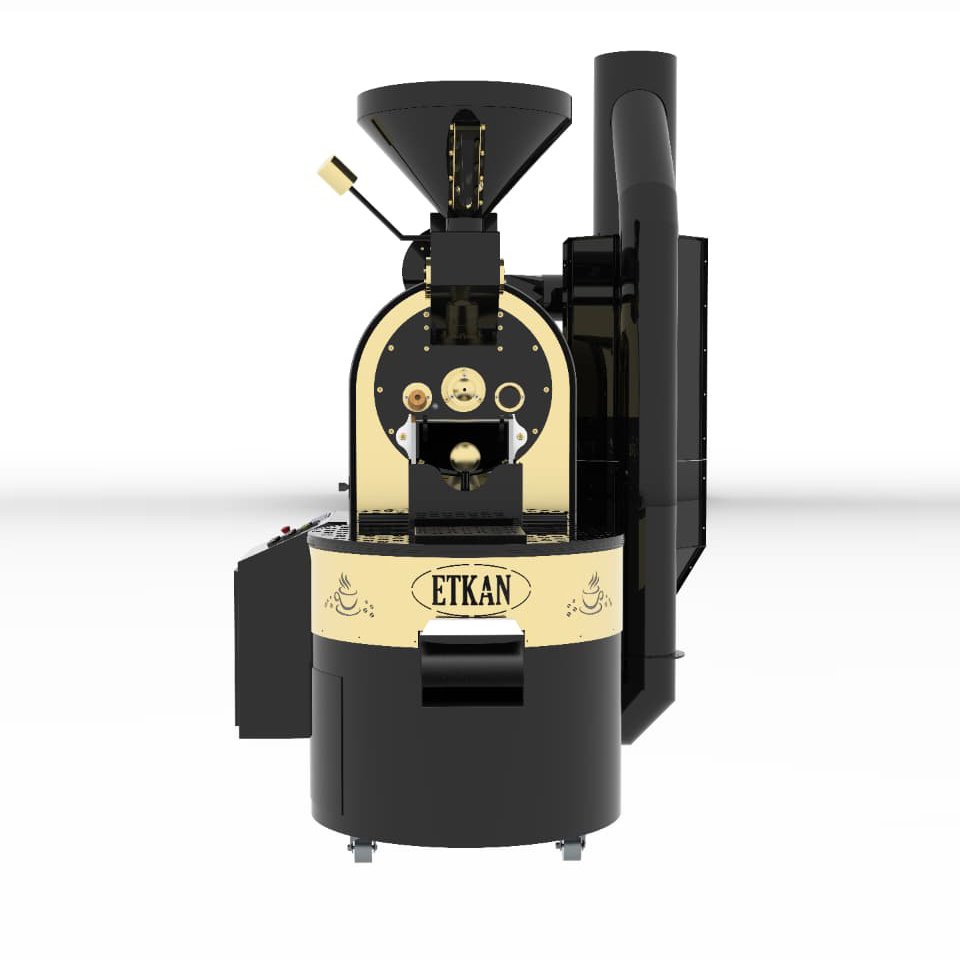

Coffee Roasters 15 Kg
Meet our best-selling 15kg Shop Roaster from ETKAN Syrian Company for Industry, your trusted partner in commercial expansion. Delivering up to 52kg/h with a rapid cooling system, it is built for efficiency. Trust our decades of experience in manufacturing coffee roasting equipment for performance that exceeds expectations.
Default features
1- Sample spoon and sampling bottle
2- The peel compartment is separate
3- Simultaneous roasting and cooling
4- The cooling system is developed by a high-performance turbine
5- Digital temperature and control indicator
Additional options
1- Transporting pills by air or mechanical feeder
2- Automatic seed discharge
3- Separate smoke filter
4- Computer operation
Gas Unit
- Gas Unit: Equipped for 4 cylinders, each with a separate valve
- Regulator: Industrial pressure regulator to control gas pressure entering the machine
- Gauges:
◦ Pressure gauge for the unit (Bar)
◦ Pressure gauge for the burner (mm bar)
Chaff Collector
- Equipped with a thermally insulated chaff collector (Cyclone)
- Designed to break air currents and improve separation to ensure final product cleanliness
- Equipped with maintenance doors
Control Mechanism
- Available Control Systems:
◦ Advanced digital control via high-resolution digital screen
◦ Manual control via traditional buttons
- Operation Options:
◦ Fully automatic control for higher precision
◦ Semi-automatic control for greater flexibility
Electrical Specs
- Voltage: 220/380 Volt – 50-60 Hz
- Max Power: 3 kW .
- Safety: Recommended to use a suitable circuit breaker to ensure safe operation.
- Panel: Separated from the machine for easy operation and maintenance .
- Inverter: Equipped to control operation speed and protect motors from overloads.
Loading Mechanism
Loading Options (Client Choice):
◦ Green bean pneumatic loader (Air).
◦ Mechanical conveyor loader.
Motors
- Origin: High-quality Turkish motors (German or Italian available upon request).
- Configuration: 3 motors for balanced performance:
1 motor of 0.5 HP.
- 3 motors of 1 HP each.
Cooling Mechanism
- Cooling Tray: Made of Stainless Steel (S.S 304) for cleanliness and easy maintenance.
- Features:
◦ Separate fan to accelerate cooling .
◦ Thermally insulated motor for efficiency.
◦ Special maintenance door for cleaning.
Insulation & Paint
- Thermal Insulation: Turkish ceramic insulation withstands 1500°C
- Paint: Electrostatic.
- Main Color: Black (Customizable upon request).
