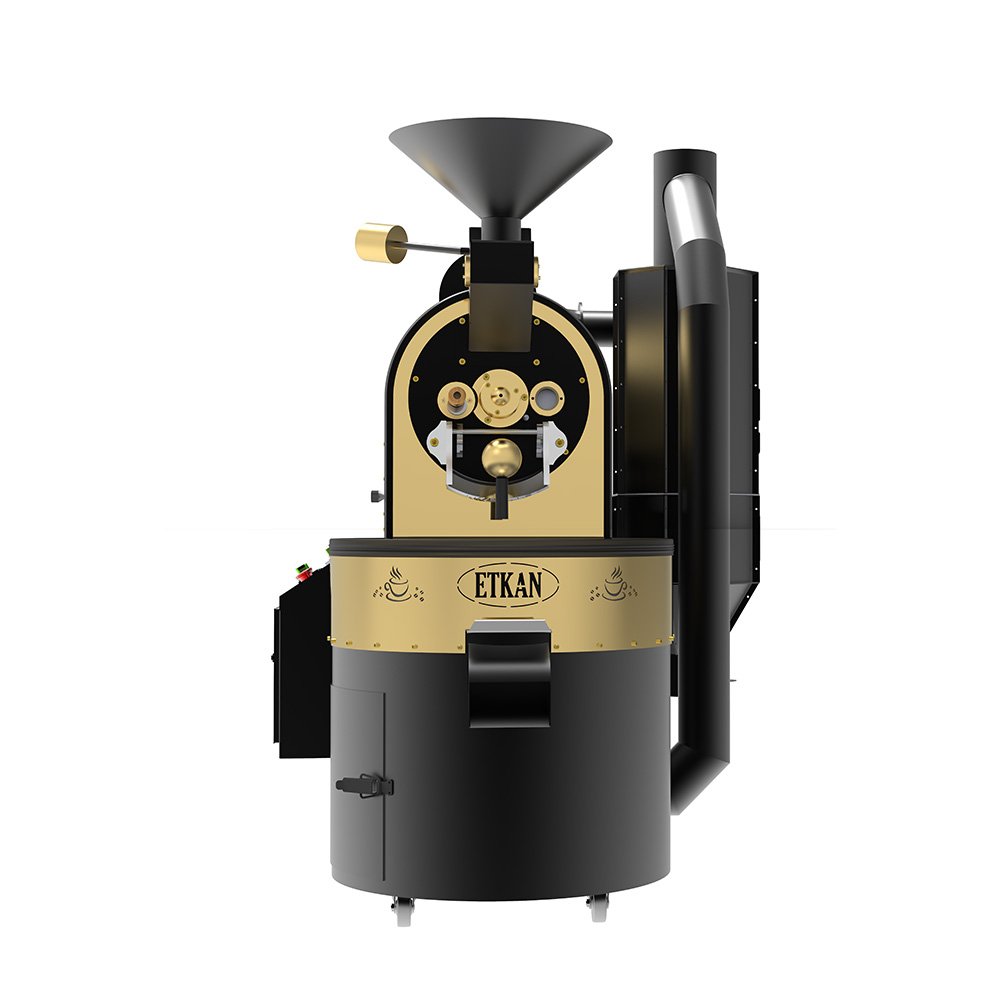

Coffee Roasters 5 Kg

Click to enlarge

Kickstart your coffee business with the 5kg Shop Roaster by ETKAN Syrian Company for Machinery and Equipment Manufacturing. As the best coffee roaster manufacturer since 1973, we provide a modern, high-output machine featuring superior Turkish ceramic insulation. Ensure consistent roasting and attract customers with the finest flavor quality.

Default features
1- Sample spoon and sampling bottle
2- The peel compartment is separate
3- Simultaneous roasting and cooling
4- The cooling system is developed by a high-performance turbine
5- Digital temperature and control indicator
Additional options
1- Transporting pills by air or mechanical feeder
2- Automatic seed discharge
3- Separate smoke filter
4- Computer operation

Description
Reviews (0)

Description

Gas Unit

Gas Unit: Equipped for 4 cylinders, each with a separate valve
Regulator: Industrial pressure regulator to control gas pressure entering the machine
Gauges:

◦ Pressure gauge for the unit (Bar)

◦ Pressure gauge for the burner (mm bar)

Chaff Collector

• Equipped with a thermally insulated peeling (cyclone) device.
• Designed to break up air currents and improve the separation process to ensure a clean final product.
• Equipped with maintenance doors.
• Equipped with water sprayers for spark control.

Control Mechanism

Available Control Systems:
o Advanced digital control system via high-resolution digital display
o Manual control system via traditional buttons
Operating Options:
o Fully automatic control for greater precision and control
o Semi-automatic control for greater flexibility

Electrical Specs

• Voltage: 220/380V – 50-60Hz
• Maximum Power: 3 kW
• Electrical Safety: A suitable circuit breaker is recommended to ensure safe operation.
• Electrical Panel: Separate from the machine for ease of operation and maintenance.
• Equipped with an inverter for speed control and overload protection of the motors.

Loading Mechanism

Loading Options (Client Choice):

◦ Green bean pneumatic loader (Air).

◦ Mechanical conveyor loader.

Motors

Country of Origin: High-quality Turkish-made motors. The machine can also be equipped with German or Italian motors according to customer requirements, ensuring reliable performance and a long service life.
Number of Motors:
- 3 motors for balanced and stable performance:
- Three 1 HP motors.
- One 0.5 HP motor.

Cooling Mechanism

- Cooling Tray: Made of Stainless Steel (S.S 304) for cleanliness and easy maintenance.
- Features:
  ◦ Separate fan to accelerate cooling .
  ◦ Thermally insulated motor for efficiency.
  ◦ Special maintenance door for cleaning.
