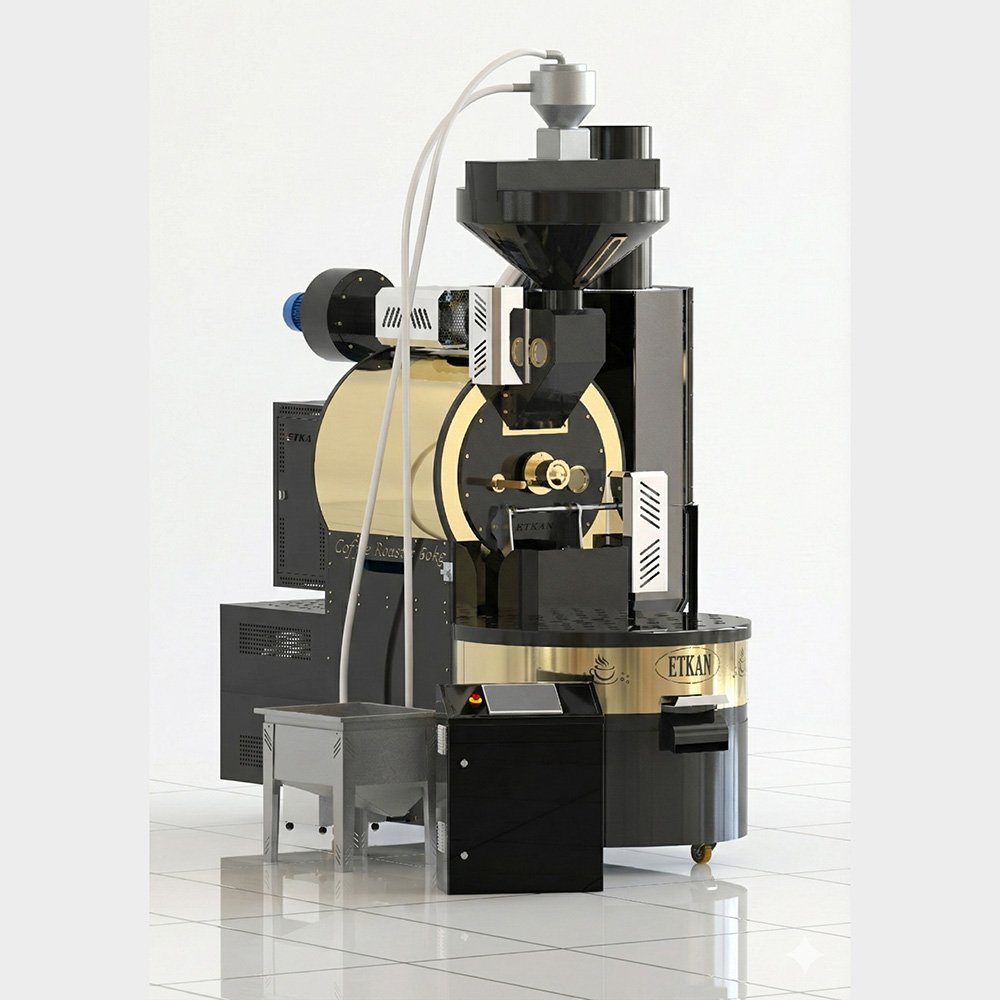

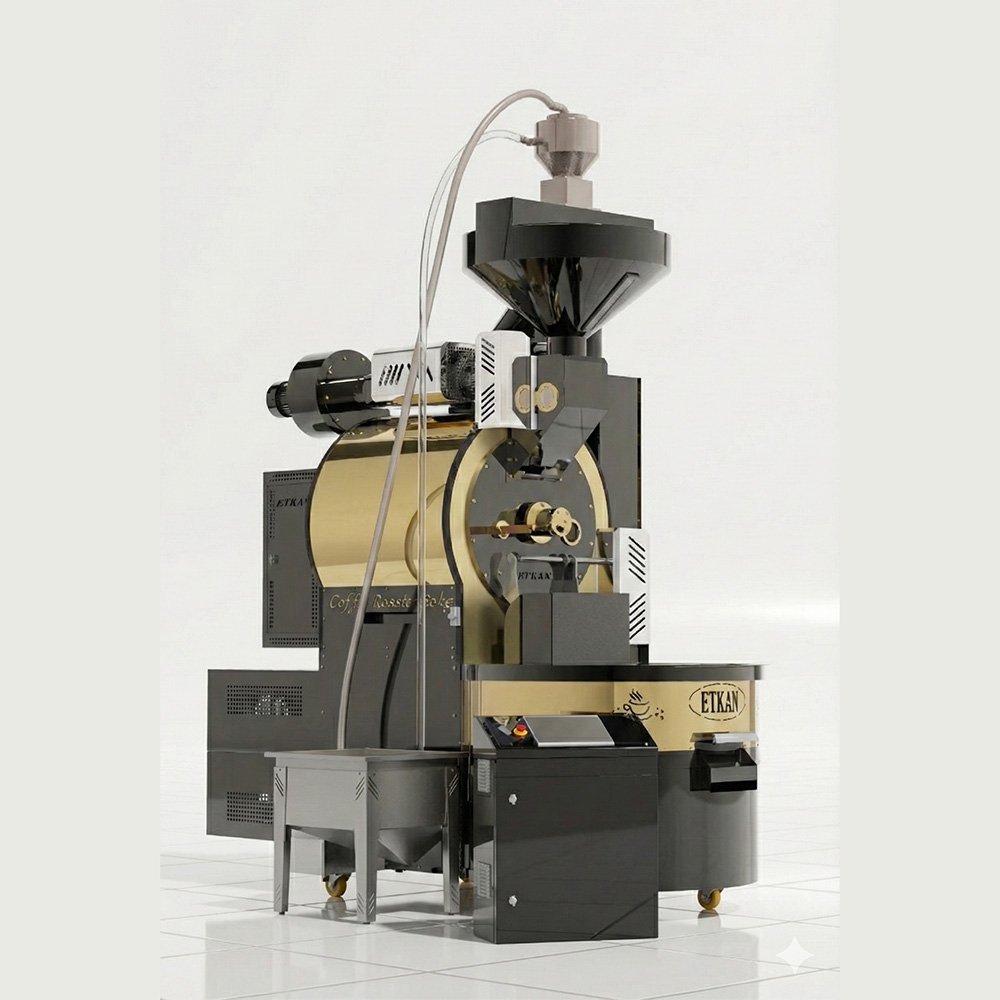

Coffee Roasters 60 Kg

Default features
1- Sample spoon and sampling bottle
2- The peel compartment is separate
3- Simultaneous roasting and cooling
4- The cooling system is developed by a high-performance turbine
5- Digital temperature and control indicator
Additional options
1- Transporting pills by air or mechanical feeder
2- Automatic seed discharge
3- Separate smoke filter
4- Computer operation

Description
Reviews (1)

Description

Gas Unit

Configuration: Industrial setup for 4 cylinders with separate valves.
Regulator: High-capacity industrial pressure regulator.
Burner: Advanced Burner system for precise heat distribution.
Gauges: Unit pressure (Bar) & Burner pressure (mm Bar).

Chaff Collector

Type: Thermally insulated industrial Cyclone.
Function: Efficient air current breaking for maximum separation.
Safety: Equipped with Water Spray Nozzles to control sparks/fire

Control Mechanism

Interface: Digital Touch Screen or Classic Manual Buttons.
Automation: Fully Automatic or Semi-Automatic options.
Sensors: Drum temp, Exhaust temp, and safety alarms.

Electrical Specs

Voltage: 220/380 Volt – 50-60 Hz.
Max Power: 15 – 18 kW (for 60kg) / 18 – 21 kW (for 120kg).
Protection: Requires industrial circuit breaker.
Control Panel: Independent unit for safety and easy access.
Inverters: 5 Drives for full speed control (Drum, Fan, Mixer, etc.).

Loading Mechanism

Standard Options:
Pneumatic Air Loader (Green Beans).
Mechanical Conveyor Belt.

Motors

- - Count: 7 Motors for heavy-duty performance.
  - Specs:
    ◦ 1 Main Motor (3 HP or 5 HP depending on model).
    ◦ 2 Motors (2 HP or 3 HP).
    ◦ 1 Motor (1 HP).
    ◦ 3 Motors (0.5 HP) for gate control.
