Ground Coffee Particle Classification & Calibration Unit
Ground Coffee Particle Classification & Calibration Unit
Achieve absolute consistency and elevate your coffee’s extraction profile with ETKAN’s advanced Particle Classification & Calibration Unit. Designed for the critical post-grind phase, this specialized industrial sifter mechanically isolates unwanted fines and boulders to deliver a perfectly homogeneous particle size distribution. Whether you are packaging premium espresso or specialty filter coffee, uniform grinding is the key to preventing over-extraction, eliminating bitter notes, and ensuring a flawless, consistent cup in every single brew.
Manufactured entirely from food-grade AISI 304 stainless steel, this robust unit combines a heavy-duty industrial vibratory motor with precision-woven micron mesh for unparalleled separation accuracy. With integrated Variable Frequency Drive (VFD) control and customizable modular sieves, production managers gain absolute authority over the final product’s texture. Upgrade your packing line to guarantee unwavering quality, significantly enhance your brand’s market value, and deliver a truly professional coffee experience to your consumers.
Construction Material
Full Stainless Steel (AISI 304): The entire structure, including the exterior, sieves, and product pathways, is built from food-grade stainless steel for maximum hygiene, durability, and corrosion resistance.
Operating System
Powered by a continuous-duty Industrial Vibratory Motor engineered for high efficiency and uninterrupted production cycles.
Vibration Control
Equipped with a Variable Frequency Drive (VFD) control panel, allowing precise adjustment of vibration frequency and intensity to calibrate separation for any coffee type or grind size.
Sieve Technology
Features Precision-Woven Mesh made of stainless steel with micron-level (µm) apertures for unmatched separation accuracy. The Modular Design allows easy removal for cleaning or swapping size ranges.
Throughput Capacity
Custom-engineered to meet your production needs, ranging from 50 kg/h for specialty roasteries up to 1000+ kg/h for continuous industrial lines.
Classification Layers
Two-Way Separation: Single layer to isolate fines.
Three-Way Separation: Dual layers to simultaneously isolate both fines and boulders, yielding a strictly defined particle size range.
Infeed / Outfeed Options
Manual System: Features a feeding hopper and separate discharge chutes (Ideal for batch processing).
Fully Automated: Seamlessly integrates with Pneumatic Conveying Systems, Conveyors, and Screw Augers.
Form Factor

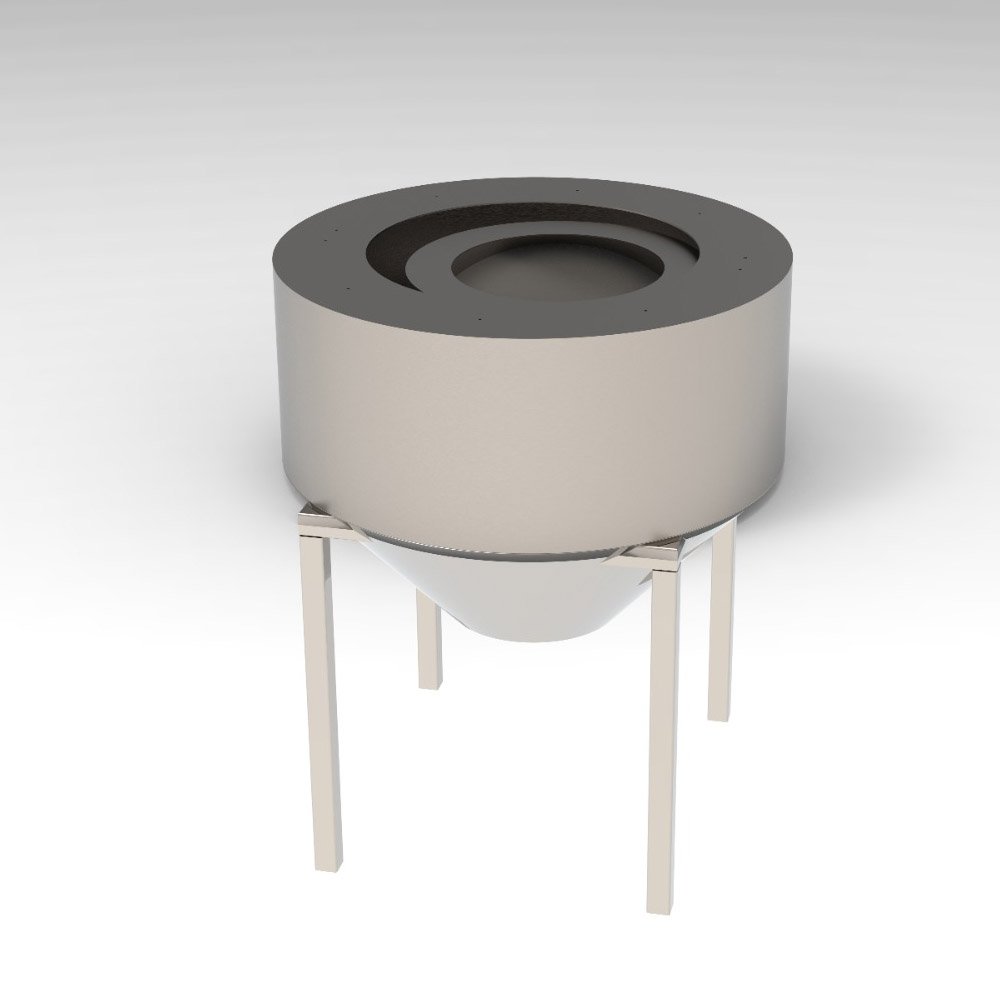

Circular Sifter: Compact, highly efficient design ideal for limited floor space.
Rectangular Screener: Provides a massive sifting area, making it the ultimate choice for continuous, high-volume industrial operations.
